The Proposed Petrol-Gas Pumping Station is a comprehensive architectural design that integrates functionality, safety, and modern aesthetics for both petrol and gas service operations.
This plan is thoughtfully designed to ensure smooth traffic circulation, efficient dispensing points, and comfortable administrative and customer spaces. It follows standard fire safety codes and petroleum facility guidelines to guarantee operational reliability and compliance with environmental and regulatory standards.

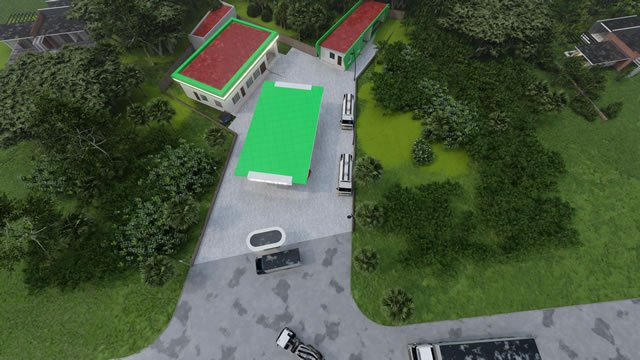

The design includes a spacious forecourt with multiple pump islands, a mini mart, an administrative office, a storage area, and restroom facilities—all optimized to deliver an excellent fueling experience to customers while maximizing business efficiency for the owner.
Whether you’re an individual investor, a corporate developer, or a petroleum marketer, this plan offers the ideal blueprint to launch a functional and profitable fuel and gas station business in any location across Africa.
Key Features:
✅ Dual Fuel Operation – Designed for both petrol and LPG gas dispensing.
✅ Efficient Traffic Layout – Seamless vehicle movement with separate entry and exit points.

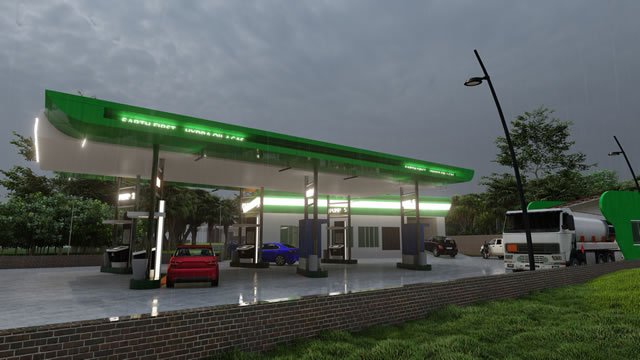

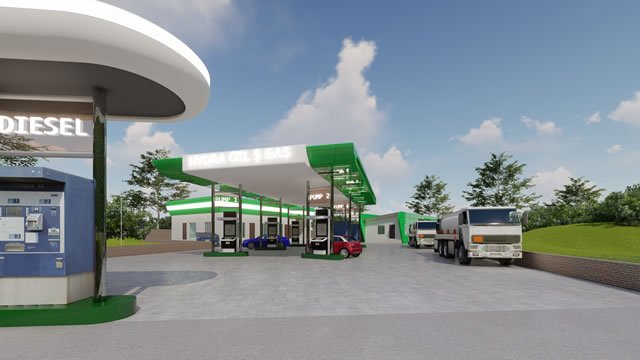

✅ Modern Forecourt Design – Includes canopy-covered pump areas and safety clearance zones.

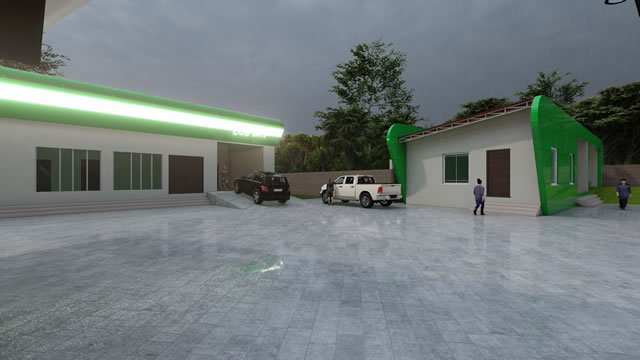

✅ Administrative & Retail Space – Well-structured mini mart and office for smooth operations.
✅ Safety-Compliant Design – Meets standard fire safety, setback, and ventilation requirements.
✅ Customer Comfort – Includes shaded waiting areas and clean restroom facilities.
✅ Energy & Utility Provisions – Dedicated generator house and storage facilities.
✅ Flexible Land Adaptation – Can be modified to suit different plot sizes and regulatory conditions.
✅ Downloadable & Editable Plan – Comes in digital (PDF) format, ready for permit submission or customization.
Technical Specifications
| Component | Description |
|---|---|
| Total Land Area | Approx. 1,500 – 2,000 sqm |
| Number of Floors | 1 Floor (Ground Floor only) |
| Building Coverage Area | 620 sqm |
| Pump Islands | 4 dispensing islands (2 for petrol, 2 for gas) |
| Fuel Storage Tanks | 2 underground tanks (45,000 liters each) |
| Gas Storage Unit | 1 surface-mounted LPG tank (30,000 liters) |
| Mini Mart / Convenience Store | 6m x 10m – stocked area with counter space |
| Cashier / Control Room | 3m x 3.5m – monitoring and cash-handling area |
| Manager’s Office | 4m x 4m – private workspace with restroom access |
| Public Restrooms (Male & Female) | 2.5m x 2.5m each |
| Service Bay / Utility Area | 8m x 10m – for generator and maintenance |
| Parking Space | For 6–10 vehicles, including customer and staff slots |
| Access Driveway | Dual entry/exit lanes for smooth vehicle circulation |
| External Finishes | Aluminum roofing, reinforced concrete floor, tiled interiors, and safety signage points |
| Design Type | Commercial / Fuel & Gas Service Station |
| Plan Format | Delivered in PDF format with floor plans, elevations, sections, and site layout drawings |
Why Choose This Plan:
-
Professionally designed for high rental or resale value.
-
Combines affordability, durability, and aesthetic appeal.
-
Ready-to-build architectural plan — downloadable immediately after purchase.
-
Option for construction supervision and modification by our in-house experts at additional cost.
