ESTATE DESIGN 1 represents a thoughtfully crafted estate layout optimized for developers and individuals looking to establish a modern residential community.
This design integrates contemporary architecture, functional space planning, and eco-friendly considerations, ensuring a balance between beauty, convenience, and sustainability.
Each housing unit within the estate is designed for optimal natural lighting and ventilation. The plan provides adequate parking, recreational space, and well-structured road networks to promote accessibility and safety.
Whether for private investors, real estate companies, or housing cooperatives, Estate Design 1 offers a ready-to-implement solution that saves design time and guarantees structural integrity and appeal.
The design is professionally developed, peer-reviewed, and ready for construction permit submission.
Key Features:
-

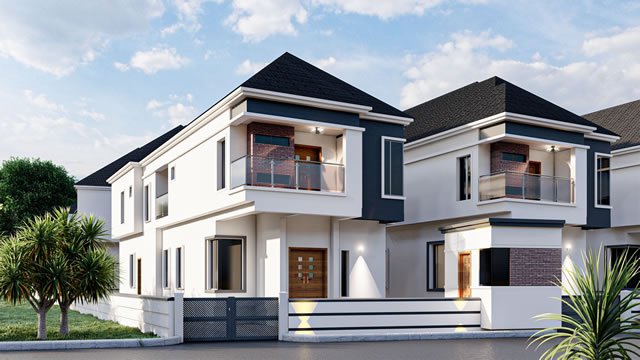

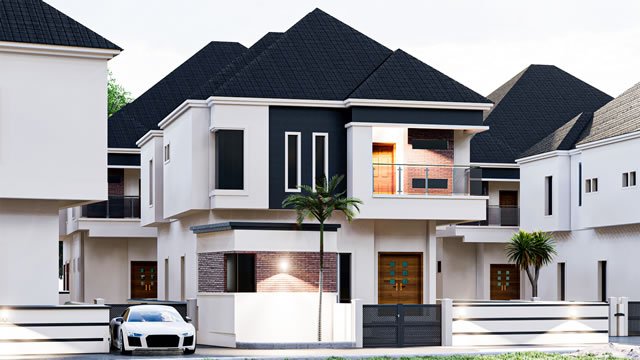

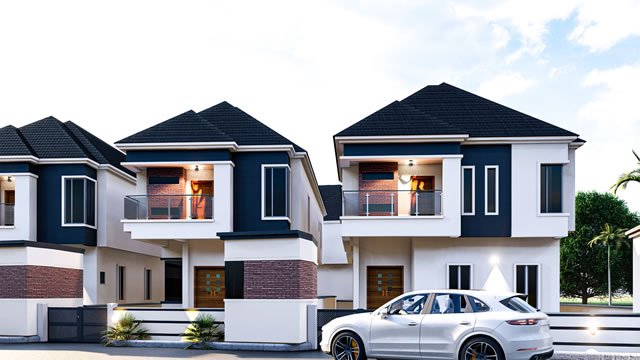

🏠 Modern Duplex Design – Contemporary exterior and functional interior layouts.
-

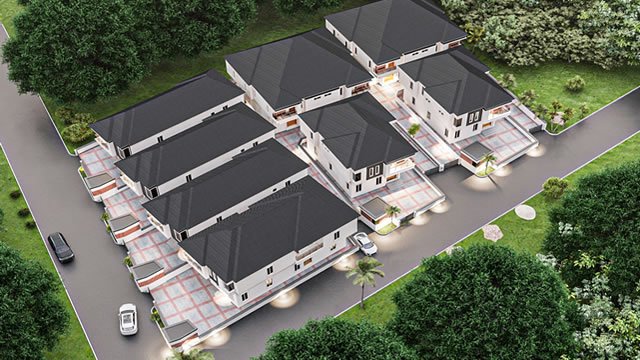

🌳 Complete Estate Layout – Includes roads, drainages, green areas, and shared utilities.
-
💡 Energy & Space Efficient – Optimized orientation for natural light and airflow.
-
🔒 Security Conscious Layout – Central entry/exit point with perimeter fencing plan.
-
🚗 Ample Parking – Designed for convenient vehicle movement and parking.
-
🧱 Professional Drawings – Includes Architectural, Structural, Electrical, and Mechanical plans in PDF format.
-
🧾 Construction-Ready – Approved for permit submission with editable CAD files available (upon request).
-
🛠️ Customizable Options – Can be modified to fit different land sizes or unit numbers.
Technical Specifications
| Specification | Description |
|---|---|
| Design Type | Residential Estate Layout |
| Total Land Area | 5,000 sqm (approx. 1.25 acres) |
| Number of Buildings | 6 Blocks of 4 Units Each (24 Units Total) |
| Building Type | 4-Bedroom Duplex Units |
| Number of Floors per Unit | 2 Floors (Ground + First Floor) |
| Plot Size per Unit | 450 sqm |
| Living Room | Spacious double-volume living area |
| Dining Area | Connected to kitchen and family lounge |
| Kitchen | Fully fitted kitchen space with store/pantry |
| Bedrooms | 4 Ensuite Bedrooms (Master, 2 Regular, 1 Guest) |
| Bathrooms / Toilets | 5 (4 ensuite + 1 visitor’s toilet) |
| Parking Space | Minimum of 2 Cars per Unit |
| Balcony | Private balcony in Master Bedroom |
| Circulation / Walkway | Interlocked walkways and estate roads |
| Security Gatehouse | Included |
| Drainage System | Well-channeled surface drainage layout |
| Landscape Plan | Garden, playground, and open green area |
| Power Supply Plan | Dedicated transformer & generator house space |
| Water Supply Plan | Central borehole and overhead tank network |
Why Choose This Plan:
-
Professionally designed for high rental or resale value.
-
Combines affordability, durability, and aesthetic appeal.
-
Ready-to-build architectural plan — downloadable immediately after purchase.
-
Option for construction supervision and modification by our in-house experts at additional cost.
